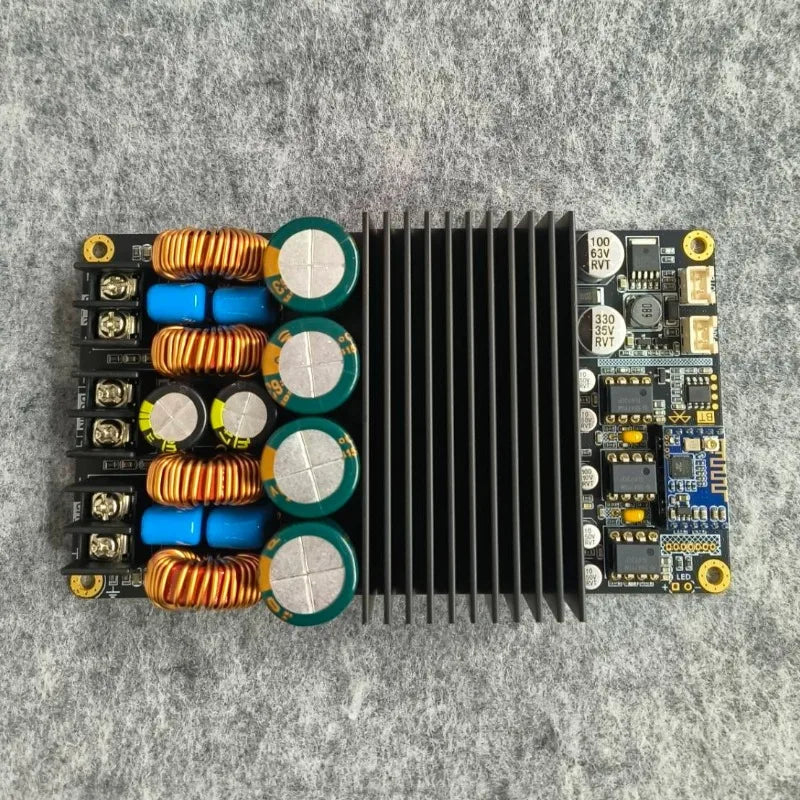

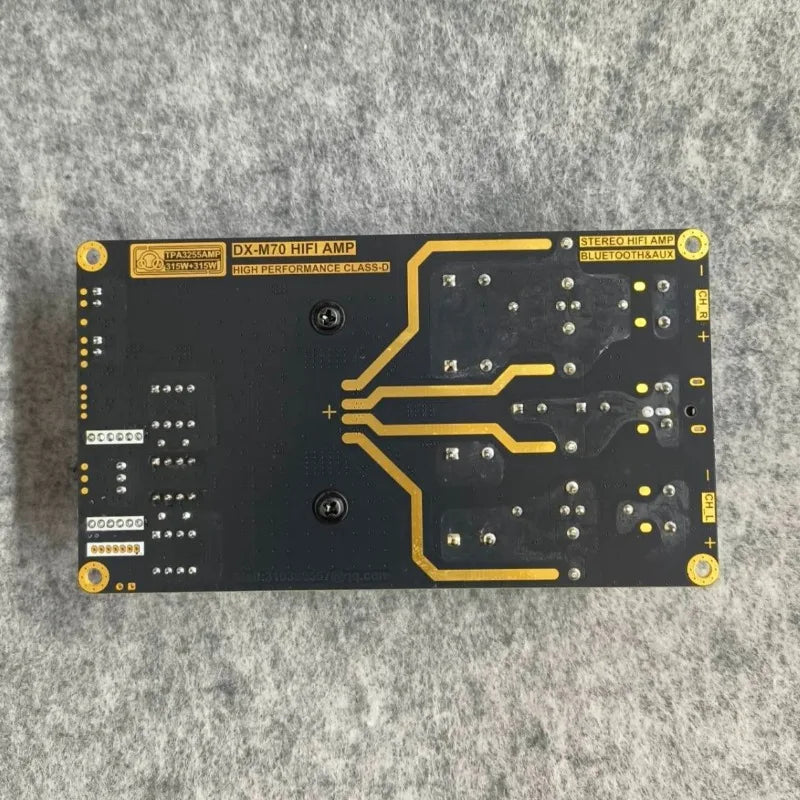

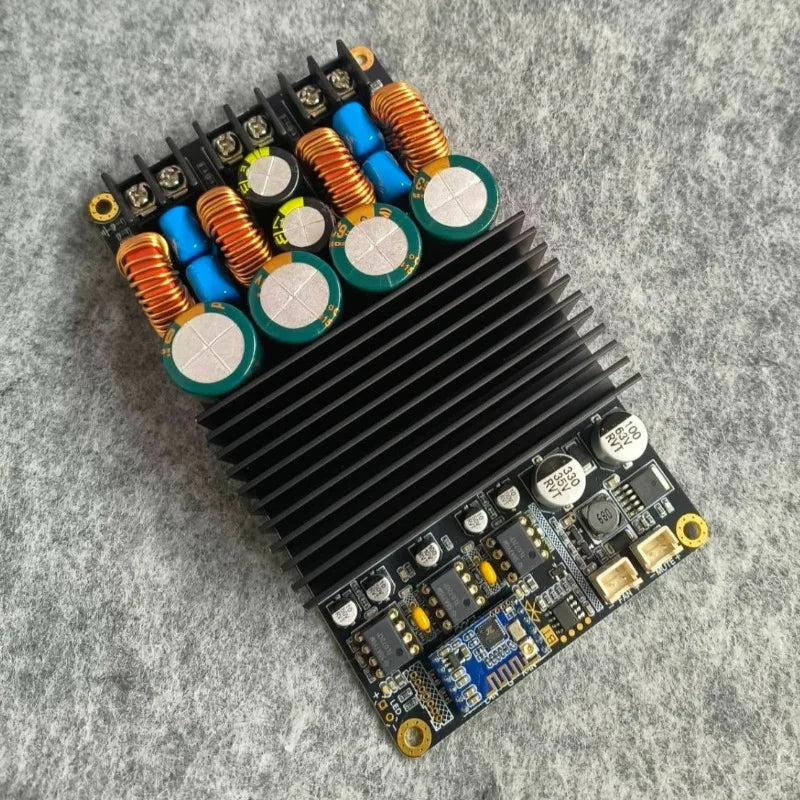

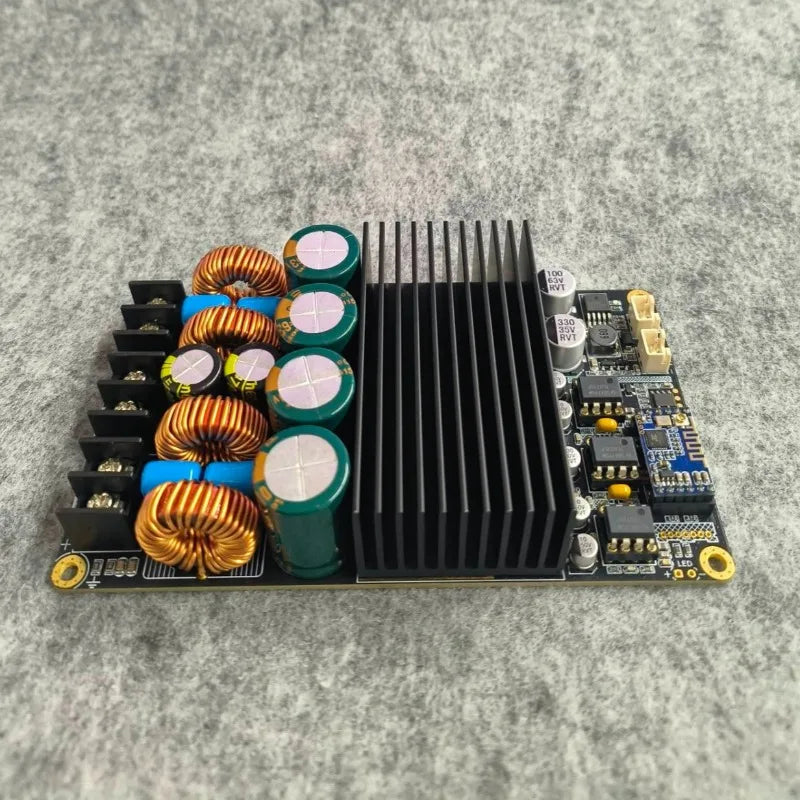

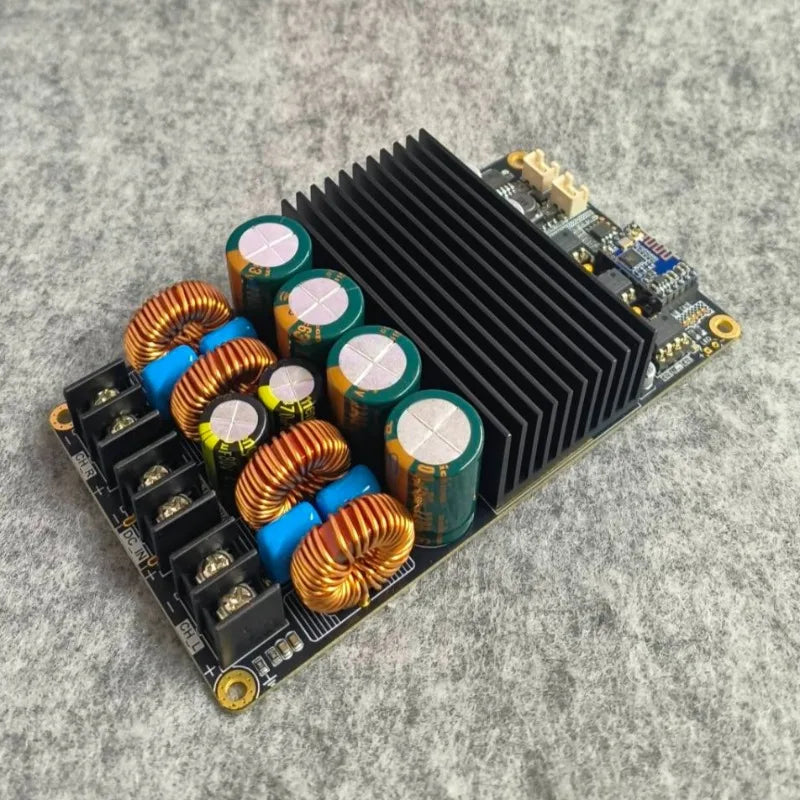

SOTAMIA TPA3255 Bluetooth Power Amplifier Board 315W+315W 2.0 Channel Aux Digital Audio HIFI Amplifier Temperature Control

TPA3255 315W+315W dual-channel fever power amplifier

Added MCU software detection and control, multiple protections, support intelligent temperature control, air-cooled heat dissipation, when the temperature of the main chip rises to 45 degrees, the fan is automatically turned on, the fan speed is automatically adjusted with the temperature, and the chip temperature is higher than 80 degrees. Automatically stop the output.The boot delay is 5 seconds to output music, and the non-impact sound experience is better. There are 2 op amps and 3 op amps versions and Bluetooth versions, which can be flexibly matched.

The Bluetooth version also supports AUX wired input, and the audio source is automatically switched. The external input is automatically disconnected when the Bluetooth is connected to the mobile phone, and the external wired input is automatically cut back when the mobile phone disconnects the Bluetooth. The switching process will not produce any noise, which is very easy to use.

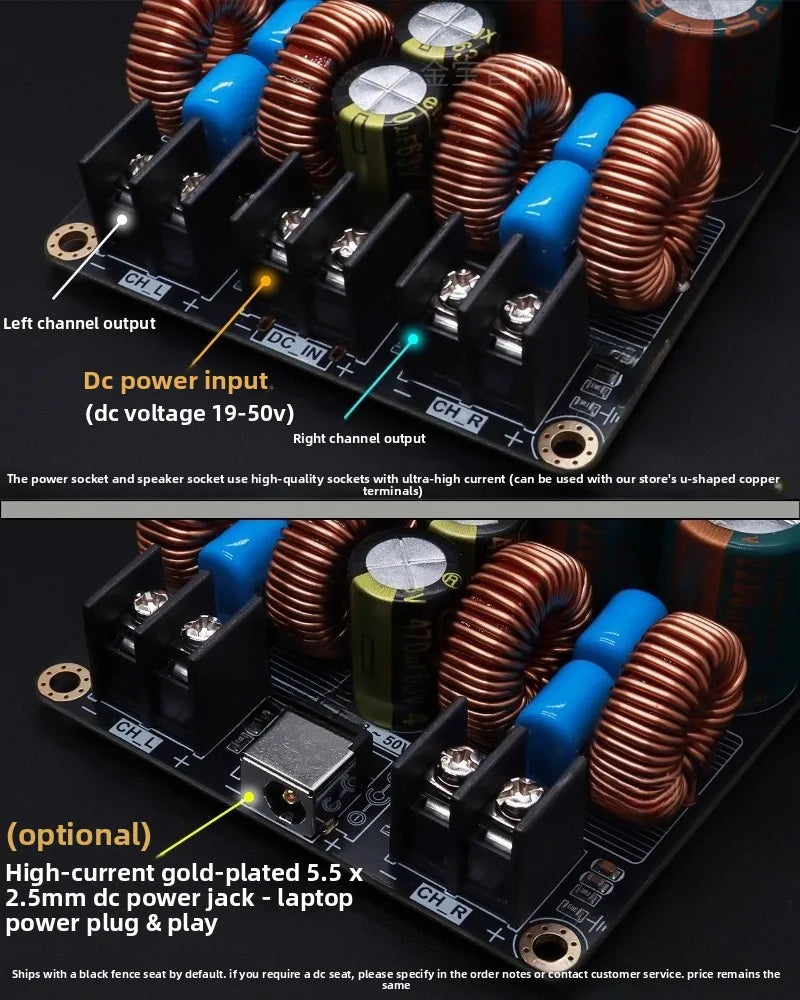

Power supply: The DC voltage is 19V to 50V, and it can be used with a switching power supply or a linear DC power supply. The motherboard is composed of 6 audio power supply dedicated fever capacitors in parallel. The ultra-low internal resistance filter line-up provides clean, stable and powerful electrical energy to the chip.

Board size: length 135mm, width 75mm, height 29mm.

Packing:

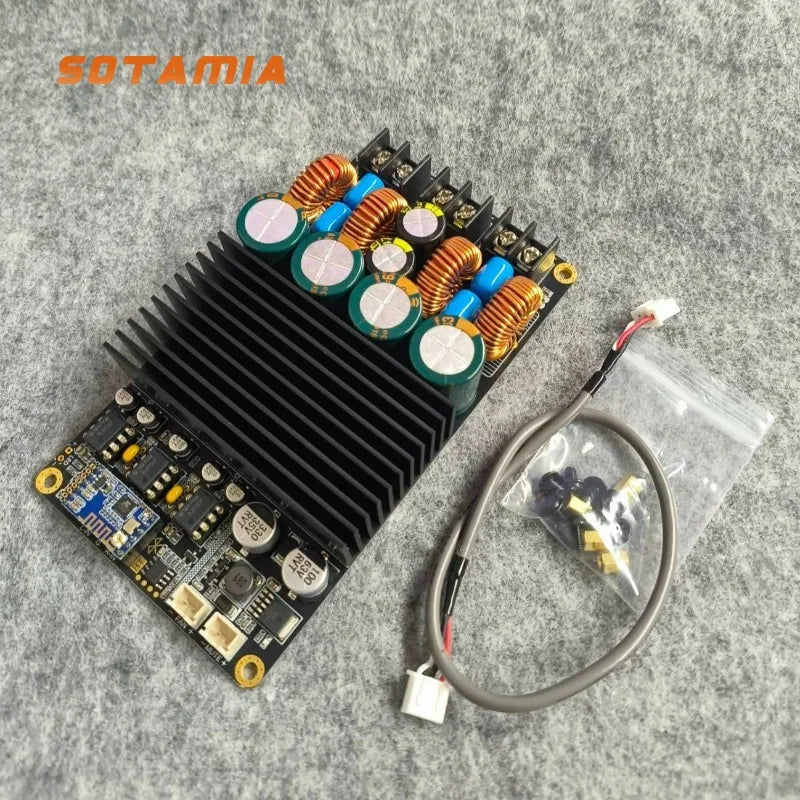

1Pcs TPA3255 Power Amplifier
